What Is a Retaining Wall Used For? (Key Functions)

What Is a Retaining Wall Used For? (Key Functions)

A retaining wall isn't installed because it looks nice in your backyard — though plenty do. Research from the National Concrete Masonry Association found that improperly graded slopes without retention systems lose an average of 2–4 inches of topsoil per year to erosion, compromising plant health, drainage patterns, and adjacent structures. That's the difference between a stable outdoor space and one that literally shifts beneath your feet.

We've designed and built hundreds of retaining walls across properties with everything from mild slopes to severe grade changes. The gap between doing it right and watching your investment crumble comes down to understanding not just what these walls do, but what happens when they're absent or poorly executed.

What is a retaining wall used for?

A retaining wall is used to hold back soil on sloped terrain, prevent erosion, create usable flat areas, manage water drainage, and protect structures from soil pressure. Without proper retention, slopes shift, foundations crack, and outdoor spaces become unusable. The wall's load-bearing capacity must match the soil type and grade to function safely long-term.

The answer's straightforward: retaining walls fight gravity. On any property with elevation change, soil wants to move downhill. A retaining wall resists that lateral pressure, keeping soil where you need it and preventing the cascade of problems that follow when earth starts migrating. This applies whether you're creating a level patio, protecting a foundation, or stopping a hillside from washing into your neighbor's yard.

The rest of this piece covers the specific functions these structures perform, the scenarios where they're non-negotiable rather than optional, what happens when they fail, and how to determine whether your project needs one before breaking ground.

Primary Functions of Retaining Walls

Retaining walls serve four core purposes, each addressing a specific failure mode that occurs on sloped properties.

Soil Retention and Slope Stability

The most obvious function: holding soil in place. When you cut into a slope to create a flat area — say, for a pool, patio, or building pad — you're creating an artificial vertical face. That exposed soil face is unstable. Without a retaining structure, it slumps, erodes, and eventually collapses. The steeper the slope and the deeper the cut, the faster this happens.

We've assessed properties where homeowners tried to skip the retaining wall and use planting alone to stabilize a cut slope. Within two rainy seasons, the slope had lost definition entirely. Plants help with surface erosion, but they don't address the structural instability of a vertical or near-vertical soil face.

Load-bearing capacity is the engineering term that defines how much lateral soil pressure a wall can resist. This isn't guesswork — it's calculated based on soil type, wall height, slope angle, and whether the soil is saturated or dry. Clay soils exert more lateral pressure than sandy soils. Saturated soil can double the load. A wall designed without accounting for these variables fails, usually within the first heavy rain after installation.

Erosion Prevention

Even on gentle slopes, unchecked erosion reshapes your landscape over time. Water flows downhill, carrying soil particles with it. On bare or lightly vegetated slopes, this process accelerates. Retaining walls stop soil from migrating by creating a physical barrier and, when properly designed, redirecting water flow away from vulnerable areas.

Erosion doesn't just remove topsoil — it undermines structures. We've seen cases where a home's foundation settled unevenly because erosion beneath an adjacent slope removed supporting soil. The foundation itself was sound; the ground beneath it wasn't. A retaining wall placed strategically upslope would have prevented the issue entirely.

Creating Usable Level Space

Sloped yards limit what you can build. You can't install a pool on a 15-degree grade. Patios on slopes drain poorly and feel unstable. Retaining walls let you carve flat, usable areas out of otherwise unusable terrain.

This is especially relevant in areas where buildable flat land is scarce. A single retaining wall can transform a sloped side yard into space for an outdoor kitchen, dining area, or fire feature. The wall doesn't just hold soil — it unlocks square footage.

The height of the wall determines how much elevation change you can manage. A 3-foot wall might create a 10-foot-deep terrace on a moderate slope. A 6-foot wall on a steeper grade might yield 15 feet of flat space. These numbers depend on the slope's original angle and the desired final grade.

Drainage Management

Retaining walls interact directly with water movement. When designed correctly, they incorporate drainage solutions that prevent water from pooling behind the wall, which would increase hydrostatic pressure and lead to failure. This usually means installing weep holes, gravel backfill, and perforated drain pipes that route water away from the wall and toward a safe discharge point.

Poor drainage is the leading cause of retaining wall failure. A wall built without a drainage system traps water behind it. That water saturates the soil, increasing lateral pressure beyond the wall's load-bearing capacity. The wall tilts, cracks, or collapses. We've replaced walls that were structurally sound but failed because the original installer skipped the drainage step entirely.

When Retaining Walls Are Required vs. Optional

Not every sloped yard needs a retaining wall, but certain conditions make them non-negotiable.

Scenario	Retaining Wall Required?	Reasoning	Professional Assessment
Slope exceeds 3:1 (horizontal:vertical) and you're creating a flat area	Yes	Slopes steeper than 3:1 are inherently unstable when cut; vegetation alone won't prevent slumping or erosion	Structural failure is a matter of when, not if, without retention
Building a structure (pool, patio, foundation) on or near a slope	Yes	Structures require stable, level substrate; shifting soil undermines footings and causes cracking or settling	Risk of structural damage far exceeds the cost of proper retention
Mild slope (5:1 or gentler) with no construction planned	No	Natural slopes at this grade are stable; erosion can be managed with planting and grading	Retaining wall would be aesthetic choice, not structural necessity
Local building code requires retention for cuts exceeding 2 feet	Yes	Code compliance isn't optional; inspectors flag unpermitted cuts and require retroactive installation	Permits and inspections protect resale value and legal standing
Property line sits at the base of a slope and erosion affects neighbors	Yes	Liability concerns; if your soil migrates onto neighboring property, you're responsible for damage	Retaining wall becomes both a practical and legal safeguard

Here's the honest answer: if you're cutting into a slope to create any kind of hardscape — patio, pool deck, outdoor kitchen, or even a large planter bed — you need a retaining wall. The only debate is how tall and what material. Skipping it to save money guarantees a more expensive repair later, often after damage has occurred to the hardscape itself.

Material Specifications and Structural Considerations

Retaining walls aren't one-size-fits-all. Material choice and design details depend on the wall's height, the soil it's retaining, and whether it's purely functional or part of the landscape aesthetic.

Concrete Block and Poured Concrete

Concrete dominates the retaining wall category for heights above 4 feet. Interlocking concrete blocks — often called segmental retaining wall (SRW) units — install faster than poured concrete and don't require curing time. They're engineered with internal setback, meaning each course sits slightly behind the one below, creating a natural backward lean that resists soil pressure.

Poured concrete offers maximum strength and is the default for walls exceeding 6 feet or for situations where lateral load is extreme (saturated clay soils, heavy surcharge loads). Poured walls require formwork, reinforcing steel (rebar), and a licensed contractor. They're also permanent — you can't adjust or move them later.

Both options require proper footing. For walls over 3 feet, this means excavating below the frost line and pouring a concrete footing that's wider than the wall itself. The footing distributes weight and prevents the wall from tipping forward.

Natural Stone and Timber

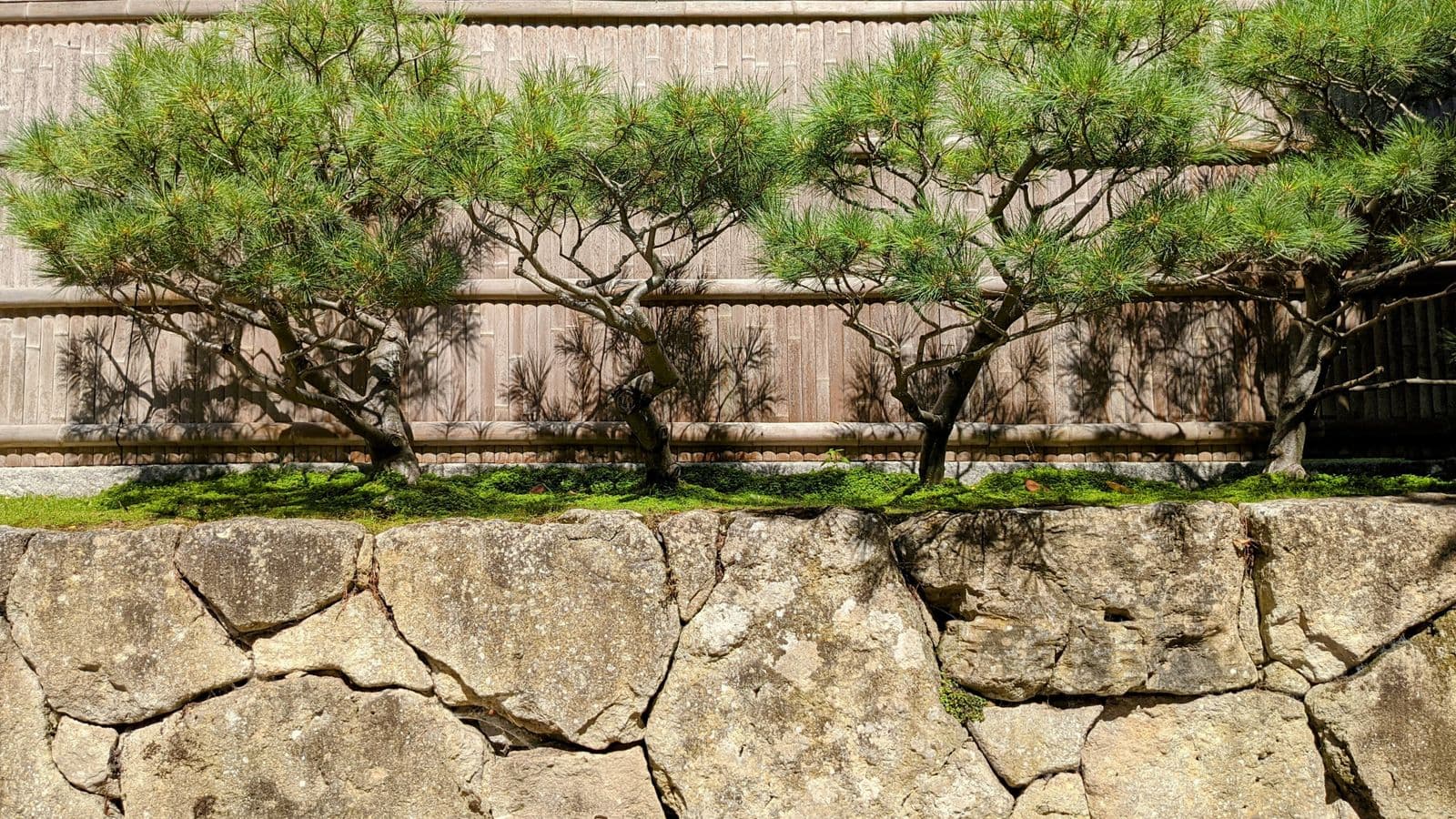

Natural stone creates a more organic aesthetic and works well for shorter walls (under 4 feet). Dry-stacked stone walls rely on gravity and friction rather than mortar. They're labor-intensive but offer excellent drainage since water flows through the gaps between stones.

Treated timber is the most budget-friendly option for short-term or temporary retention. Expect a 15–20 year lifespan before rot compromises structural integrity. Timber works for walls up to 3 feet in most soils, but it's less common in 2026 as concrete and composite options have become more cost-competitive.

Seat/Retaining Walls

Dual-purpose walls combine retention with built-in seating. These require precise height planning — typically 18 inches for comfortable seating — and must still meet the same structural standards as purely functional walls. We integrate these into patio designs where the retaining wall borders a dining or fire pit area, adding function without sacrificing aesthetics.

The cap material on seat walls matters. Smooth concrete caps get hot in direct sun; natural stone stays cooler. Textured finishes prevent slipping when wet.

Drainage Solutions and Their Critical Role

Let's be direct about this: drainage isn't an add-on feature. It's the difference between a retaining wall that lasts 30 years and one that fails in three.

Weep Holes and Gravel Backfill

Weep holes are small openings near the base of the wall that allow trapped water to escape. They're spaced every 4–6 feet horizontally and typically 6–12 inches above grade. Behind the wall, a layer of gravel (usually 12–18 inches thick) creates a drainage zone. Water percolates through the gravel and exits through the weep holes instead of building pressure against the wall.

Without this gravel layer, fine soil particles clog weep holes within months, rendering them useless. The gravel must be clean (no fines) and angular rather than rounded — crushed rock works; pea gravel doesn't.

Perforated Drain Pipe

For walls over 4 feet or in areas with heavy rainfall, a perforated drain pipe (often called a French drain) runs along the base of the wall, embedded in the gravel backfill. This pipe collects water and routes it to a safe discharge point — usually a storm drain, dry well, or lower section of the property.

The pipe must be wrapped in filter fabric to prevent soil infiltration. We've seen installations where the pipe was installed bare; it clogged within two years, and the wall started tilting soon after.

Backfill Soil Type

The soil placed directly behind the wall affects drainage and pressure. Granular soils (sand, gravel) drain quickly and exert less lateral pressure than clay. If the native soil is clay, we replace the backfill zone with granular material to reduce load on the wall. This is part of the site assessment before installation — soil type dictates wall design.

Key Takeaways

• Retaining walls resist lateral soil pressure, with load-bearing capacity calculated based on wall height, soil type, and saturation level.
• Slopes steeper than 3:1 (horizontal to vertical) are unstable when cut and require retention to prevent slumping and erosion.
• Proper drainage — including weep holes, gravel backfill, and perforated drain pipe — is the primary factor determining long-term wall performance.
• Material specifications vary: concrete blocks for heights over 4 feet, natural stone for aesthetic shorter walls, timber for temporary or budget installations.
• HOA compliance and local building codes often mandate retention for cuts exceeding 2 feet; unpermitted walls risk fines and forced removal.

What If: Retaining Wall Scenarios

What If the Wall Starts Leaning Forward or Shows Cracks?

Stop using the space immediately and get a site assessment from a licensed contractor. Forward lean indicates the wall is losing its fight against soil pressure — either because drainage has failed, the footing is inadequate, or the wall wasn't designed for the actual load. Small cracks (hairline) in poured concrete are cosmetic; cracks wider than 1/4 inch that run vertically or diagonally signal structural failure. Most leaning walls can't be repaired in place — they need to be rebuilt with proper drainage and footing.

What If You Want to Add a Retaining Wall to an Existing Slope?

You'll need a site assessment to determine soil type, slope angle, and drainage patterns before design begins. Existing vegetation often needs to be removed in the construction zone, and you'll need access for equipment — typically a skid steer or mini excavator. The project timeline depends on wall height and length; a 30-foot wall at 4 feet tall typically takes 5–7 days from excavation to final cap installation. Expect permitting and inspection requirements if the wall exceeds 4 feet or sits near a property line.

What If Your Property Has Multiple Elevation Changes?

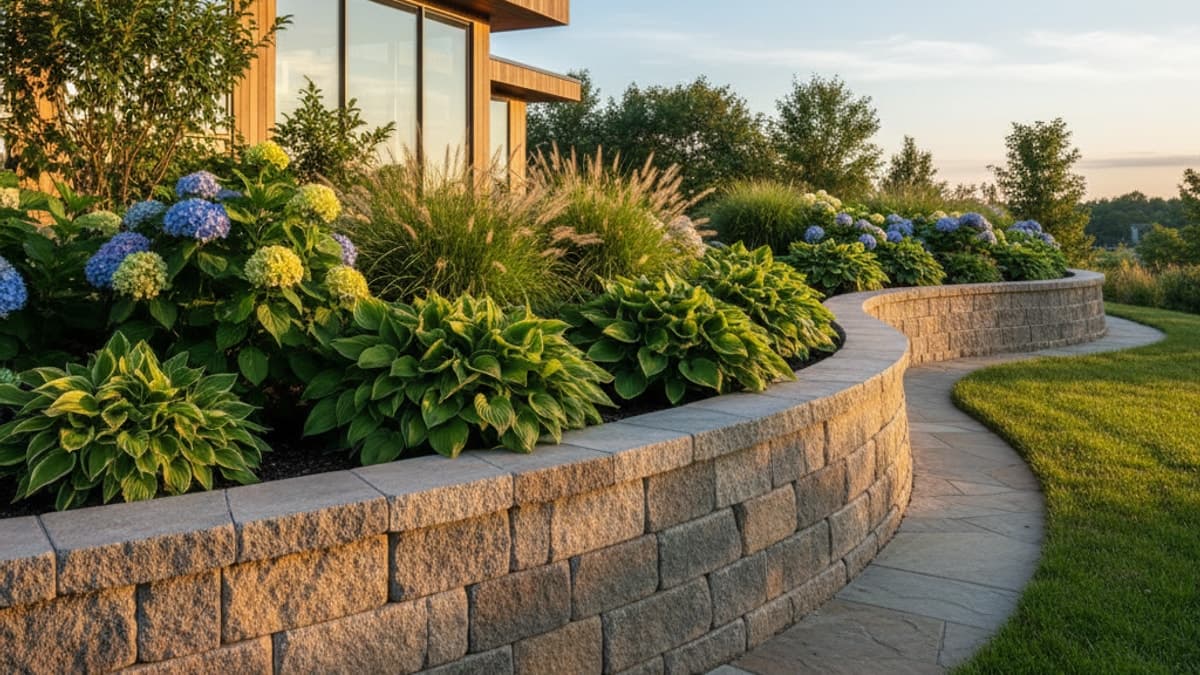

Terracing — installing multiple shorter retaining walls instead of one tall wall — is often the better solution. Building codes in many areas cap retaining wall height at 6 feet without engineered plans. Multiple 3–4 foot walls stepped down a slope are easier to permit, less expensive to build, and create more usable flat zones than a single 10-foot wall. Each terrace can serve a different function: upper terrace for dining, mid-level for a fire pit, lower level for a lawn or garden bed.

What If You're Installing a Pool or Spa Near a Slope?

The retaining wall must go in before the pool. Pool excavation destabilizes adjacent slopes, and the pool shell itself can't support lateral soil pressure. The wall needs to be designed for the additional surcharge load — the weight of the pool, water, and deck pushing down on the soil the wall is retaining. This typically requires engineered plans and a structural footing that ties into the pool deck. We build these as integrated systems where the pool coping and retaining wall cap are the same material for visual continuity.

What If the Wall Needs to Match Existing Hardscape Aesthetics?

Material specification becomes critical. If your existing patio uses a specific paver style or stone type, the retaining wall cap should match. Manufacturers offer cap units in most common paver profiles. For natural stone patios, we source wall stone from the same quarry lot to ensure color consistency. The before-and-after visual impact of a well-matched retaining wall is immediate — it looks like part of the original design rather than an afterthought.

Maintenance Schedule and Long-Term Performance

Retaining walls aren't install-and-forget. Regular inspection prevents small issues from becoming structural failures.

Annual Inspection Checklist

Once a year — ideally after the wettest part of your rainy season — walk the length of the wall and check for: forward or backward lean (sight down the top of the wall from each end), cracks wider than 1/4 inch, displaced or sunken blocks, clogged weep holes (water should drain freely after rain), and vegetation growing in joints (roots can displace blocks over time).

Clear weep holes with a wire brush or compressed air. Remove any vegetation from the wall face. Check that the area in front of the wall drains properly — standing water at the base indicates a grading problem that needs correction.

Workmanship Warranty Expectations

Licensed and insured contractors typically offer a 1–3 year workmanship warranty on retaining wall installations. This covers defects in construction — improper footing depth, inadequate backfill compaction, or incorrectly installed drainage. Material defects (cracked blocks, faulty caps) are usually covered separately by the manufacturer for 10–25 years. Get warranty terms in writing before the project starts.

When to Call for Professional Assessment

Any visible lean, significant cracking, or water pooling behind the wall requires immediate professional evaluation. Don't wait for the next rainy season. Retaining wall failure is progressive — it accelerates once it starts. A wall with a 2-degree forward tilt might be repairable with drainage upgrades and soil removal; a wall at 10 degrees is coming down.

We also recommend professional assessment if you're planning to add load above the wall — a patio extension, outdoor kitchen, or heavy planting beds. The wall's original design might not account for the additional surcharge, and reinforcement could be necessary.

Cost Considerations and ROI on Home Improvement

Retaining walls represent a significant investment, but they're often the only way to unlock unusable space or protect existing structures.

Square Footage Cost Factors

Pricing is typically calculated per square foot of wall face (height × length) or per linear foot for walls of standard height. Material, wall height, site access, and soil conditions all drive cost. Concrete block walls range from $25–$50 per square foot installed. Natural stone runs $50–$100+ per square foot depending on stone type and wall complexity. Poured concrete with engineered plans runs $60–$120 per square foot for walls over 6 feet.

Site access affects cost significantly. If equipment can't reach the site and material must be hand-carried, labor costs increase. Poor soil conditions — expansive clay, high water table, or loose fill — require additional excavation and engineered solutions, adding to the project timeline and budget.

ROI and Property Value

Retaining walls that create usable outdoor space deliver measurable ROI. A wall that transforms a sloped side yard into a flat patio adds functional square footage to the property. Outdoor living spaces — patios, kitchens, fire pits — consistently rank among the top features buyers request. The wall itself might not appear in the listing photos, but the level entertaining area it made possible certainly will.

Retaining walls that prevent erosion or protect foundations don't add square footage, but they preserve property value and prevent costly damage. A foundation repair due to soil settlement can run $10,000–$30,000. The retaining wall that would have prevented the issue costs a fraction of that.

Curb Appeal and Aesthetic Value

A well-designed retaining wall elevates the entire landscape. Tiered terraces with integrated landscape lighting create depth and visual interest. Seat walls bordering a patio define the space and add function. Natural stone walls blend into garden beds and soften hardscape transitions.

The visual difference between a property with and without proper retention is stark. Sloped, eroded yards look neglected. Terraced, retained spaces look intentional and cared for. That perception gap translates directly into curb appeal.

How Installation Method Affects Performance

The installation process determines whether a retaining wall meets its design lifespan or fails prematurely.

Excavation and Footing Preparation

Everything starts with the footing. For walls over 3 feet, this means excavating a trench below the frost line — depth varies by climate, typically 12–18 inches in temperate zones, deeper in colder areas. The trench must be level along its length and compacted at the base. Loose or uneven substrate causes differential settlement, where one section of the wall sinks faster than another, creating cracks and lean.

The footing itself is poured concrete, typically 12 inches wide for a 4-foot wall and wider for taller structures. Rebar runs the length of the footing for tensile strength. The first course of block or the formwork for poured concrete is set while the footing is still wet, creating a monolithic bond.

Backfill Compaction

Backfill goes in behind the wall in 6–8 inch lifts, each compacted with a plate compactor or jumping jack before the next lift is added. Uncompacted backfill settles over time, creating voids behind the wall and allowing it to tilt backward. Proper compaction is labor-intensive and time-consuming, which is why less experienced installers skip it. The result doesn't show immediately — settlement happens over months or years.

Granular backfill material compacts more reliably than clay. If the native soil is clay, we replace it with crushed rock or engineered fill in the zone directly behind the wall.

Geogrid Reinforcement for Tall Walls

Walls over 6 feet often require geogrid — synthetic mesh that's laid horizontally in the backfill and extends several feet behind the wall. This ties the wall into the soil mass behind it, effectively turning the wall and the reinforced soil zone into a single, much larger retaining structure. Geogrid is specified by the structural engineer based on soil type and wall height. Installation is straightforward but precise — the grid must be at the correct depth and extended the full specified distance.

What Modern Landscape Design Brings to Retention Projects

Retaining walls don't exist in isolation. When integrated into a full landscape design, they become part of a cohesive outdoor environment.

We design retaining walls alongside patio covers and pergolas that define overhead space, artificial turf that creates low-maintenance green zones on the terraces, and integrated lighting that highlights wall texture after dark. The wall's material and profile are chosen to complement pavers, fire features, and seating areas — not as an afterthought, but as part of the original concept.

This approach prevents the disjointed look of piecemeal installations. When the retaining wall, patio surface, and plantings are designed together, they share visual language — color palette, material texture, and spatial rhythm. The result feels intentional rather than assembled.

If you're facing slope challenges, drainage issues, or wasted outdoor space, the solution starts with an honest site assessment and a clear understanding of what a retaining wall can — and can't — do. Visit Modern Yardz to see how we approach retention as part of complete outdoor transformations, from design through construction.

Most importantly: if you're cutting into a slope or building on one, don't gamble on whether you need retention. The cost of getting it wrong — collapsed soil, damaged structures, or failed inspections — far exceeds the cost of doing it right the first time.
